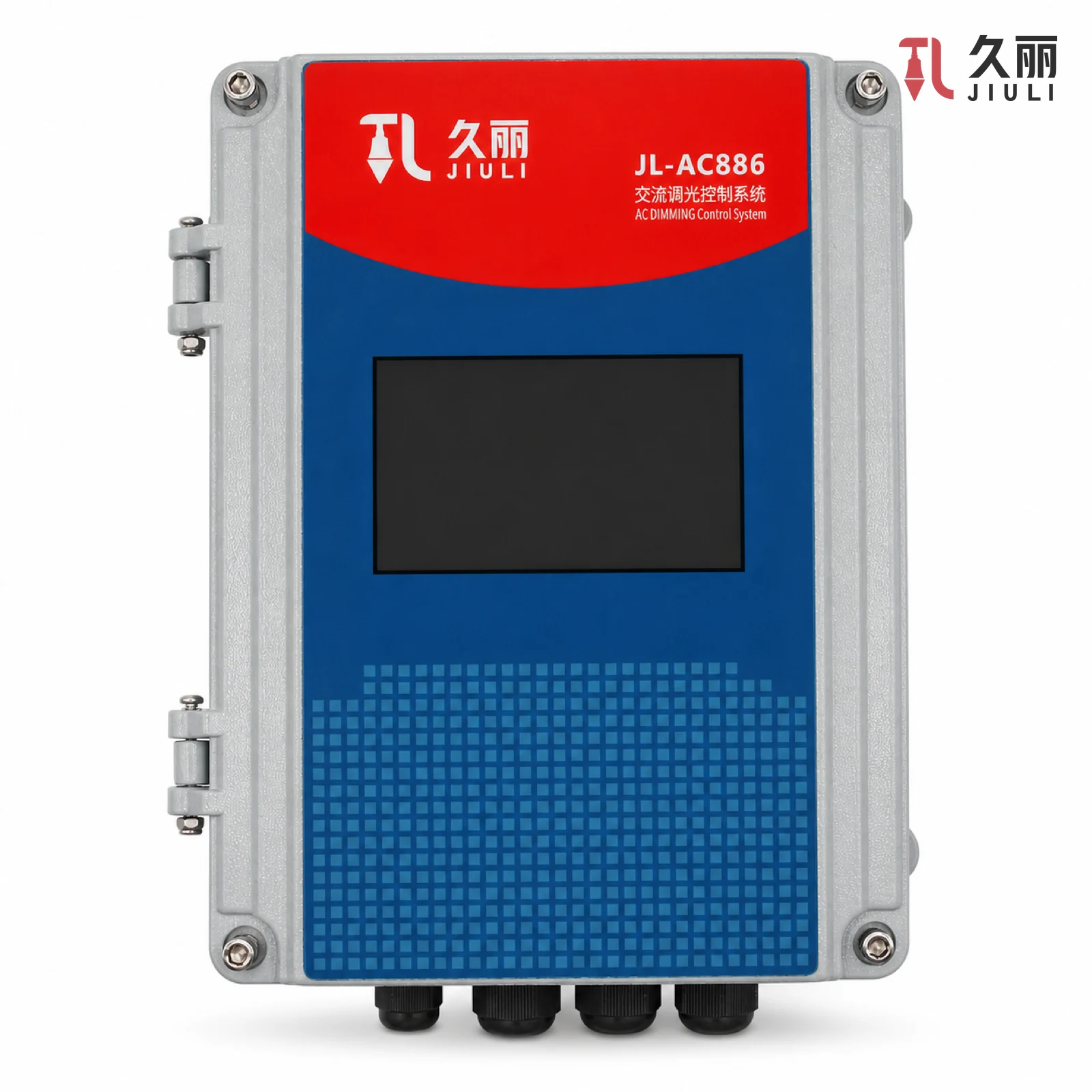

JL-AC886 Smart Poultry Lighting AC Dimming Controller
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
JIULI AC Dimming Solution
JL-AC886 Smart Poultry Lighting Controller
A touchscreen AC dimming controller for programmable poultry-house lighting, with automatic and manual modes, sunrise/sunset simulation, dual-color control and preset lighting curves.
Product Overview
The JL-AC886 is presented as an AC dual-color dimming controller for poultry houses. It combines a capacitive touchscreen, programmable lighting curves, automatic/manual control modes, age-based scheduling and sunrise/sunset simulation. The catalog also describes a JIULI PLC communication mechanism between the controller and compatible luminaires.
Three dimming modes
Automatic dimming, manual dimming and dimming-signal input from an environmental controller are listed.
Preset lighting curves
The controller includes 50 preset lighting-control curves according to the catalog.
Sunrise and sunset simulation
Scheduled transitions can simulate gradual light-on and light-off periods.
Dual-color control
The controller supports bi-color switching and dimming for compatible luminaires.
Age-based scheduling
Age calculation modes can run from daily 00:00 or from flock placement time.
Protection package
Over-current, short-circuit, over-temperature and surge protection are listed.
Recommended Applications
- Layer-house lighting programs
- Broiler and breeder lighting schedules
- Dual-color AC poultry lighting systems
- Projects requiring automatic curves and touchscreen operation
Selection & Project Information
- Confirm connected lamp type and total wattage
- Confirm whether luminaires support JIULI PLC communication
- Define dimming curve and sunrise/sunset timing
- Confirm single-color or dual-color operation
- Verify the controller nameplate before final publication
Model Specifications
The published page should use the catalog values unless the production nameplate or current datasheet provides a newer specification.
| Parameter | Catalog Value |
|---|---|
| Product Model | JL-AC886 |
| Operating Voltage | 150-260VAC, 50/60Hz |
| Efficiency | >98% @ 230VAC |
| Rated Power | 3500W @ 220VAC |
| Dimming Signal | 0-10V DC |
| Display | 4.3-inch capacitive touchscreen |
| Languages | Chinese / English |
| Protection | OCP / SCP / OTP / Surge Protection |
Frequently Asked Questions
Answers are limited to information supported by the current product catalog.
Does the JL-AC886 support automatic schedules?
Yes. The catalog lists automatic dimming, sunrise/sunset simulation, age calculation and preset lighting curves.
Can it control dual-color lighting?
Yes. The catalog lists bi-color switching control and dimming for compatible luminaires.
What is the rated power?
The uploaded catalog states 3500W at 220VAC. Confirm this against the current production nameplate before publication.
Which protections are listed?
Over-current, short-circuit, over-temperature and surge protection are listed.
Get a Lighting Layout and Quotation
Send the poultry house type, dimensions, cage or floor-rearing layout, mounting height, input voltage, preferred control method and estimated quantity. JIULI can then recommend the suitable product series and configuration.
