JLT160 Floor-Rearing Poultry LED Light
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
DC120 / AC120 Floor-Rearing Lighting Series

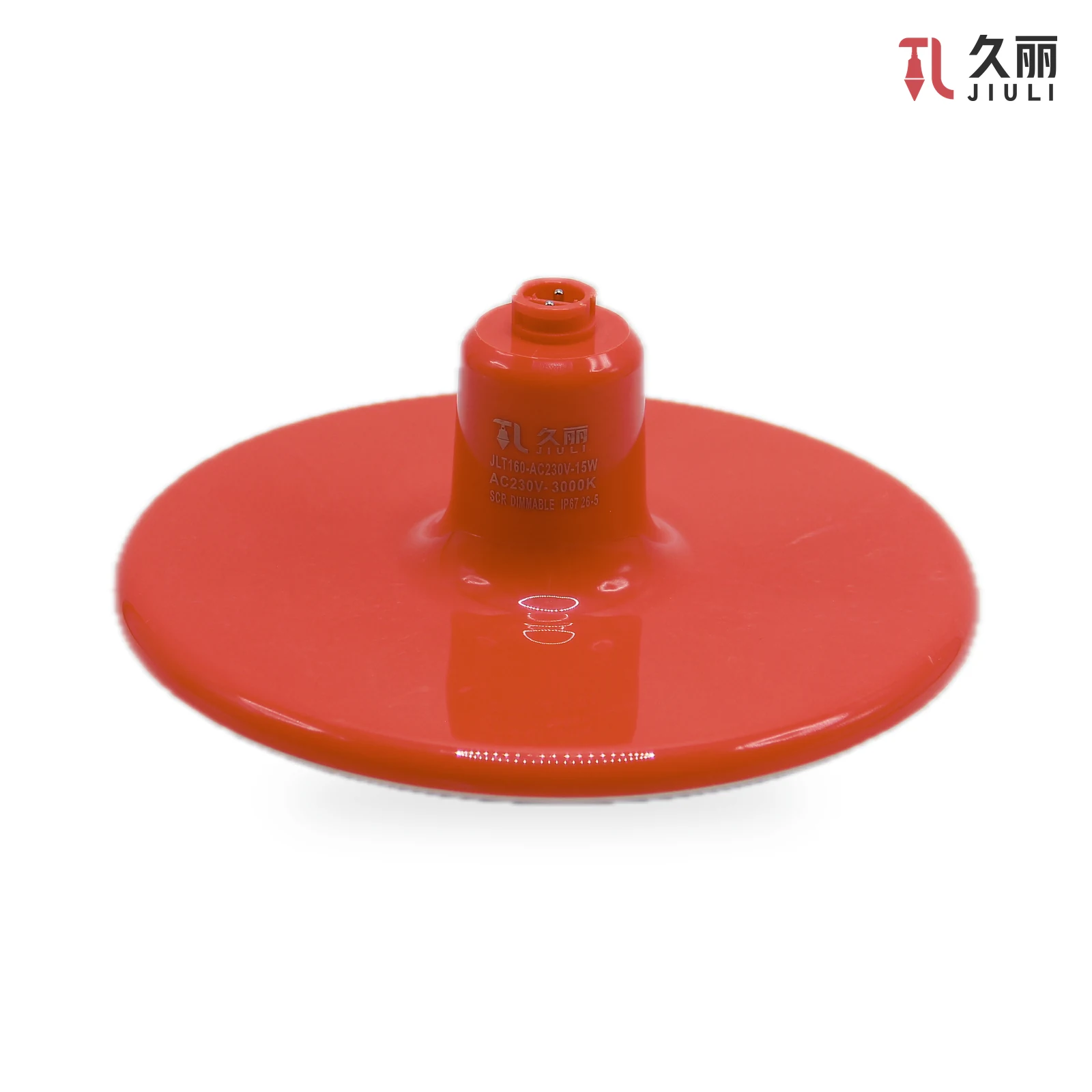

JLT160 120° Floor-Rearing Poultry LED Light
A downward-focused poultry light with a large-area diffuser, designed to increase useful floor illumination and improve uniformity in broiler, layer and breeder houses.
Product Overview
The JLT160 series uses a large-area diffuser with a beam angle of less than 120 degrees to direct more light downward. The catalog states that this approach improves useful coverage, supports more uniform illumination and can reduce the number of fixtures required in suitable layouts.
Downward-focused distribution
A beam angle below 120 degrees directs more light toward the poultry floor and target area.
Uniform lighting objective
The catalog states that the installation concept can limit brightness differences between cage positions to within two times.
Thermal management
A large-area aluminum heat sink is specified for lower operating temperature.
IP67 sealing system
Special-grade silicone sealing is described for high-pressure water-jet cleaning and chemical disinfection.
DC and AC versions
DC48V variants use PLC dimming and color change; AC230V variants use SCR control without color change.
Poultry applications
The series is listed for floor rearing, broiler, layer and breeding-chicken houses.
Recommended Applications
- Floor-rearing broiler houses
- Floor-rearing layer houses
- Breeder houses
- Projects requiring downward-focused wide-area illumination
Selection & Project Information
- Confirm house dimensions and mounting height
- Select DC48V PLC or AC230V SCR version
- Specify target lux and lighting schedule
- Confirm whether dual-color or color change is required
- Provide washdown and disinfection requirements
Model Specifications
The JLT160 family includes DC48V PLC-controlled and AC230V SCR-controlled versions.
| Model | Voltage | Power | Lumen | CCT | Dimming | IP | Life | Color Change | Base |
|---|---|---|---|---|---|---|---|---|---|
| JLT160-48V-6W | DC48V | 6W | 600 lm | 3000-6500K | PLC | IP67 | 50,000 h | Yes | E27 / M15 |
| JLT160-48V-8W | DC48V | 8W | 800 lm | 3000-6500K | PLC | IP67 | 50,000 h | Yes | E27 / M15 |
| JLT160-48V-12W | DC48V | 12W | 1200 lm | 3000-6500K | PLC | IP67 | 50,000 h | Yes | E27 / M15 |
| JLT160S-230V-9W | AC230V | 9W | 900 lm | 3000-6500K | SCR | IP67 | 50,000 h | No | E27 / M15 |
| JLT160S-230V-12W | AC230V | 12W | 1200 lm | 3000-6500K | SCR | IP67 | 50,000 h | No | E27 / M15 |
| JLT160S-230V-15W | AC230V | 15W | 1500 lm | 3000-6500K | SCR | IP67 | 50,000 h | No | E27 / M15 |
Certificates & Model Coverage
Use certificates only for the exact models stated in the original documents.
Frequently Asked Questions
Answers are limited to information supported by the current product catalog.
What is the JLT160 beam angle?
The catalog describes a beam angle of less than 120 degrees.
Which poultry types are listed?
The catalog lists broiler, layer, breeding chicken and floor-rearing applications.
Which variants support color change?
The catalog lists color change for the DC48V PLC variants and no color change for the AC230V SCR variants.
Can all AC230V models use the uploaded certificates?
That cannot be confirmed from the current documents because the certificate and catalog use different AC model naming. Confirm model equivalence first.
Get a Lighting Layout and Quotation
Send the poultry house type, dimensions, cage or floor-rearing layout, mounting height, input voltage, preferred control method and estimated quantity. JIULI can then recommend the suitable product series and configuration.
